SAQ-CA Series Tunnel Type Conveyor-zed Jet Washing Line Machine specification
INCLUDE DESIGN AND MACHINE DETAILS
SAQ-CA Series Tunnel Type Conveyor-zed Jet Washing Line
MACHINE DESIGN PARAMETER
| CLEANING OBJECT | : | METAL STAMPING PARTS / AUTOMOTIVE PARTS / PCB SUBSTRATE / PLASTIC TRAY/CONTAINER | ||||||
| CLEANING LIQUID | : | CHEMICALS / WATER / ALKALINE / ANTI RUST | ||||||
| DRY METHOD | : | OVEN CONCEPT | ||||||
| MACHINE HANDLING TYPE | : | CONVEYOR | ||||||
| CYCLE TIME | : | DEPEND ON THE TOTAL PROCESS FLOW | ||||||

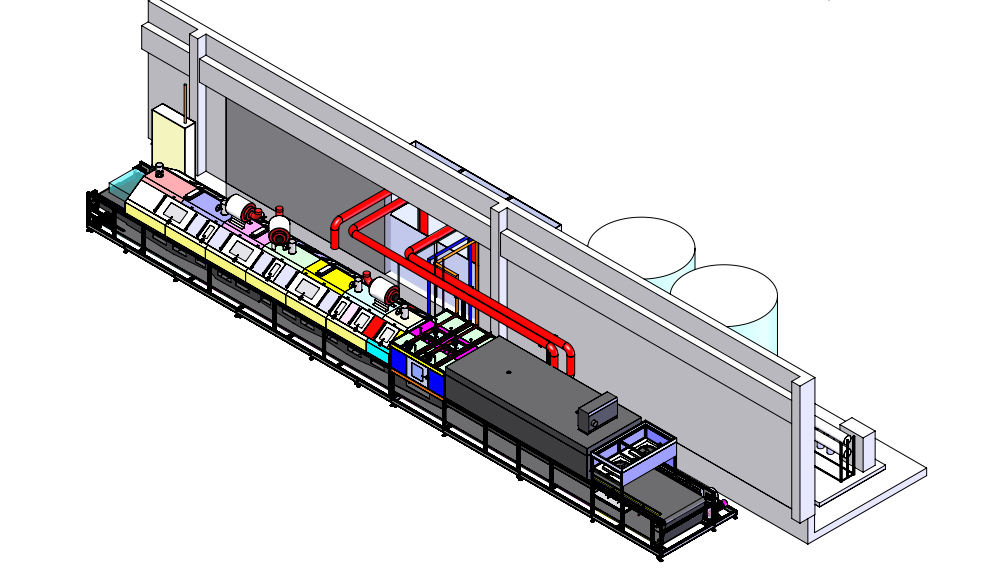

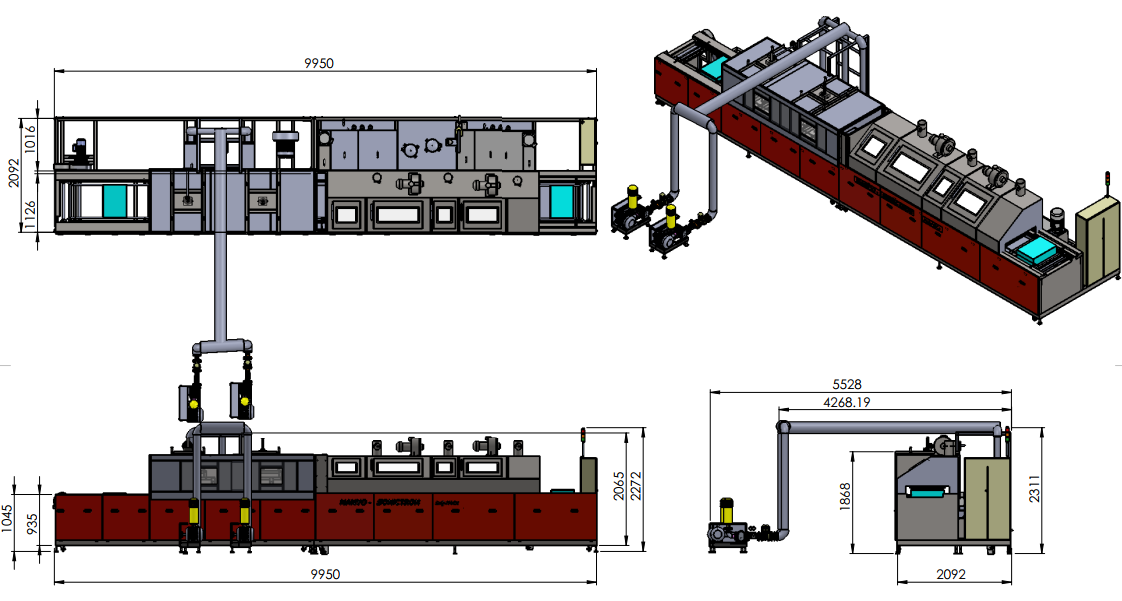

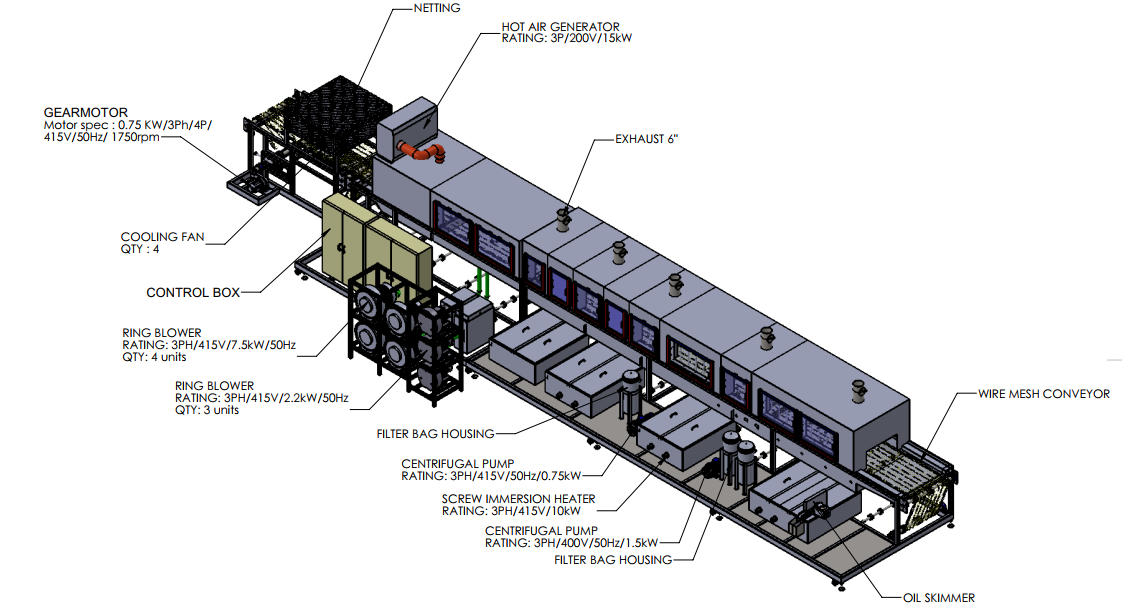

MACHINE DESIGN OVERVIEW
SAQ-CA Series Tunnel Type Conveyor-zed Jet Washing Line or conveyor inline cleaning machine had been one of our core products. The machine design depends on the end-user cleaning process requirement. Each design will have a different process and machine design but the same basic process which is SPRAY CLEANING - SPRAY RINSE - DRYING.

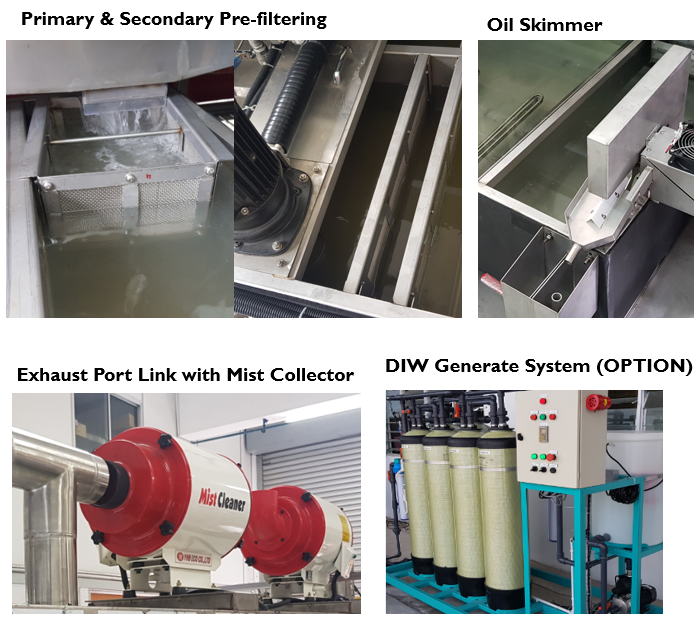

Taking sustainability and the environment into consideration, we have incorporated a set of high-precision filtration installations to recover and recycle the contaminated chemical. Contaminants are screened before they can find their way into the filtration system. Chemical fume is prevented from escaping into the surroundings with the installation of a mist collector.
MACHINE FEATURES

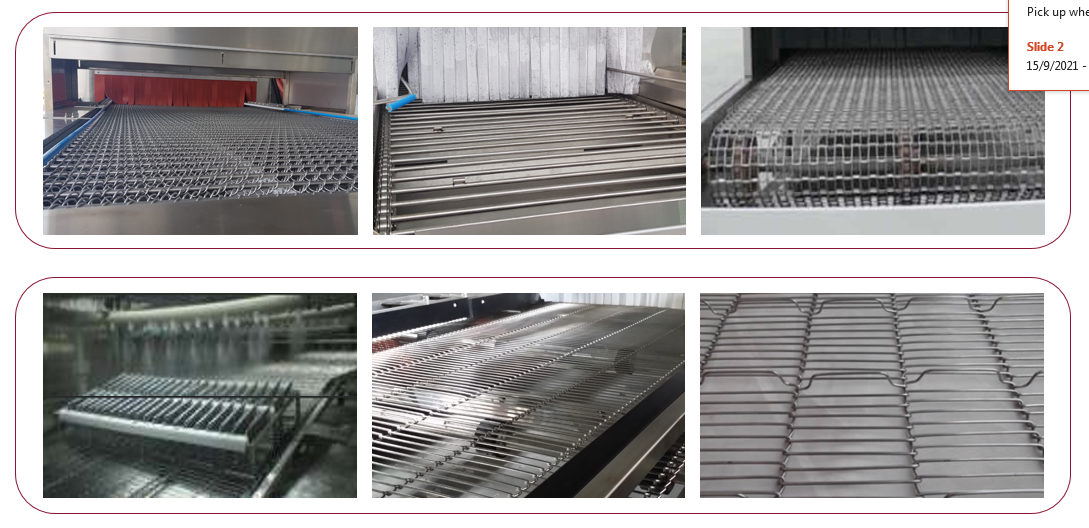

SAQ-CA Series Tunnel Type Conveyor-zed Jet Washing Line or conveyor inline cleaning machine also has a variety of conveyor types because it depends on product design and size. For every contamination, we have the right technology accompanied with the most effective chemistry or methodology.
SAQ-CA Series Tunnel Type Conveyor-zed Jet Washing Line or conveyor inline cleaning machine design not only focuses on end-user process flow but also the maintenance services area and operation.

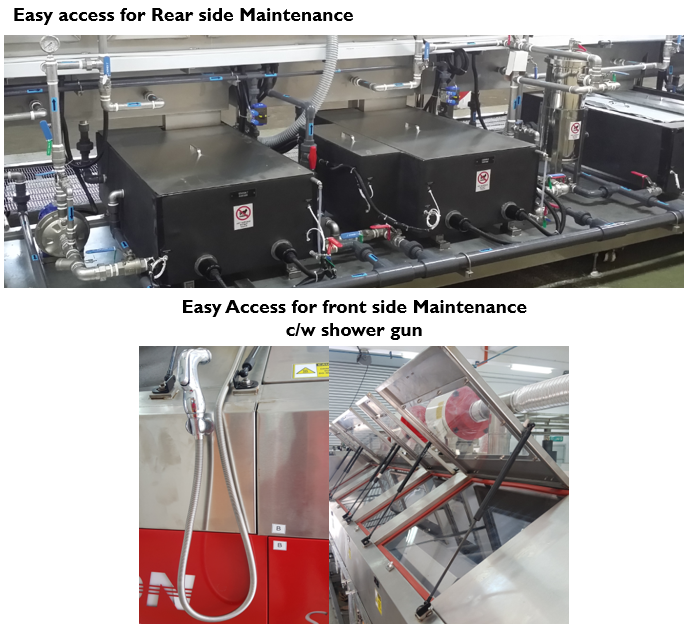

SAQ-CA Series Tunnel Type Conveyor-zed Jet Washing Line or conveyor inline cleaning machine design has easy access at all sides of the machine for machine maintenance purposes.
SAQ-CA Series Tunnel Type Conveyor-zed Jet Washing Line or conveyor inline cleaning machine design also make sure the location or assembly of wear and tear items has easy access area and use easy plug and play concept.
Besides that, SAQ-CA Series Tunnel Type Conveyor-zed Jet Washing Line or conveyor inline cleaning machine integration system has also been proved effective and efficient.
