Buy SVD-MoH SERIES VAPOR DEGREASOR CLEANING MACHINE Malaysia

SVD-MoH series Vapor Degreaser ultrasonic cleaning machine is the cleaning system that includes condensing solvents vapors on the item that is being cleaned.

The cycle doesn't need any water or cleaning.

All things considered, the SVD-CoH series Vapor Degreaser ultrasonic cleaning machine utilizes dissolvable vapors to clean and eliminate pollutants from parts.

This interaction is utilized to clean different materials during the assembling system like plastic, glass, metal, gold, and clay.

SVD-MoH series Vapor Degreaser ultrasonic cleaning machine systems are safety operated and design with INVENTEC TOPKLEANTM and PROMOSOLVTM with a non-flammable EHS, EC & EPA approved solvent.

SVD-MoH Series Vapor Degreaser Ultrasonic Cleaning Machine Working Process

SVD-MoH Vapor Degreaser ultrasonic cleaning machine consists of 2 stages process including, wash, rinse & slow pull out. it has been designed in response to the latest defluxing/degreasing needs.

In this process, parts [PCB after assembly] are immersed in the green tank filled with solvent within the machine. Additional ultrasonic system and agitation process is encouraged for a better cleaning result.

After that, the basket remains above the green tank but below the cooling coils. This area is called the vapor area. The vapor degreaser boils the solvent. Solvent vapors rise but don’t escape because they’re trapped within the machine by a layer of refrigeration provided by the cooling coils.

The vapor then condenses on the surface of the parts dissolving the contaminants. As the solvent drips off the objects it removes the soils with it. This is a closed-loop process, so the solvent is cycled over and over again.

Then, the parts go through 2^nd time rinsing. The parts will be immersed in the yellow tank that is filled up with 100% solvent [recycle and clean solvent].

Drying the parts in the cold area is the last process of the SVD-MoH Vapor Degreaser ultrasonic cleaning machine

The process is illustrated in the diagram configured below;

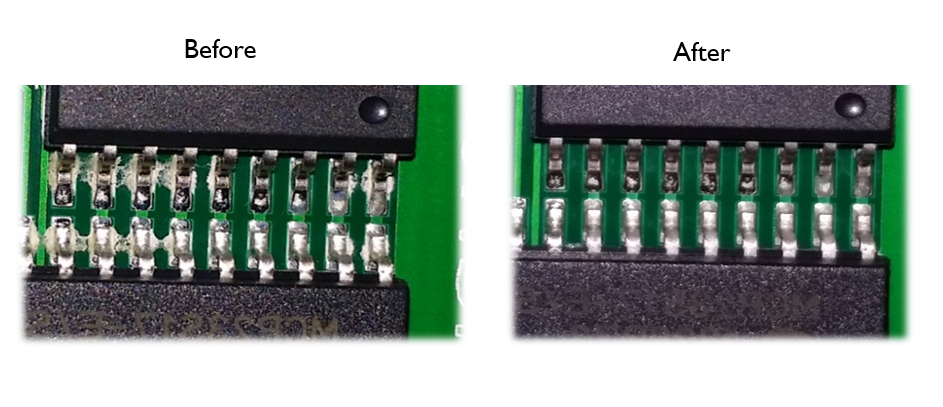

SVD-MoH Series Vapor Degreaser Ultrasonic Cleaning Machine Cleaning Result

This is the result of our client products after cleaning using SVD-MoH Series Vapor Degreaser Ultrasonic Cleaning Machine.

SVD-MoH Series Vapor Degreaser Ultrasonic Cleaning Machine Machine Features

1. Easy maintenance approach
2. Convenience Control approach
3. Effective system integration
4. Measure and driving approach.
