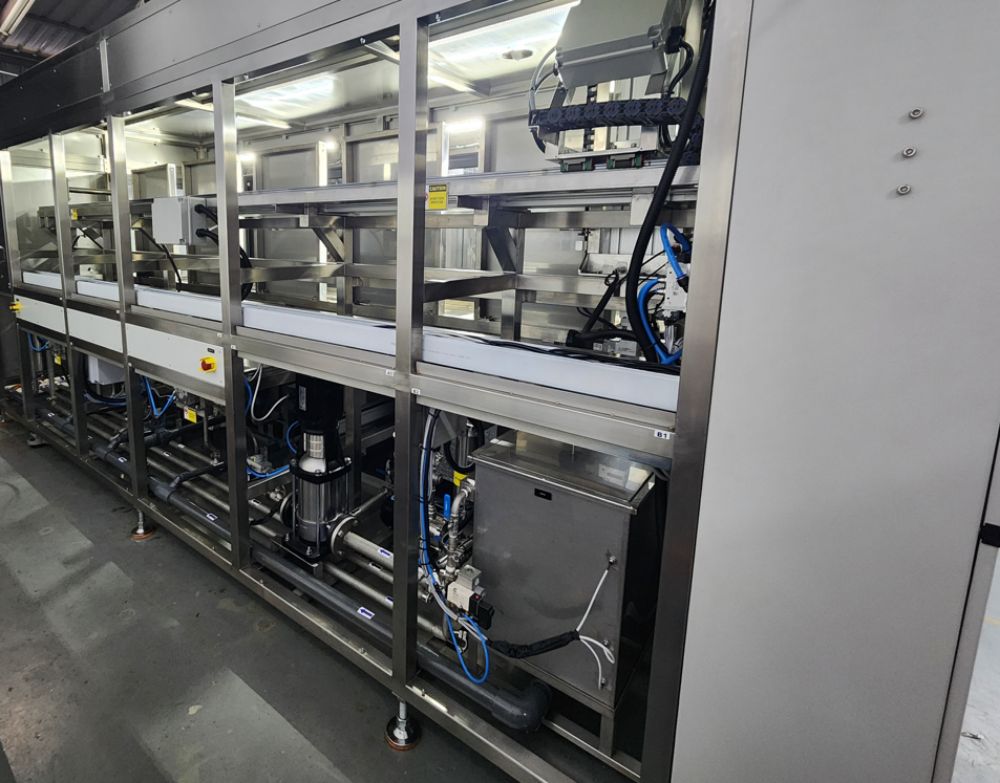

The SAQ-MA4 magazine cleaning machine ensures every component stays free from contaminants. Using advanced technology, it provides top-notch cleaning efficiency, protecting semiconductor processes. With the SAQ-MA4, expect better performance, less downtime, and higher productivity, making it an essential tool for any semiconductor facility aiming for the best

Machine Features :

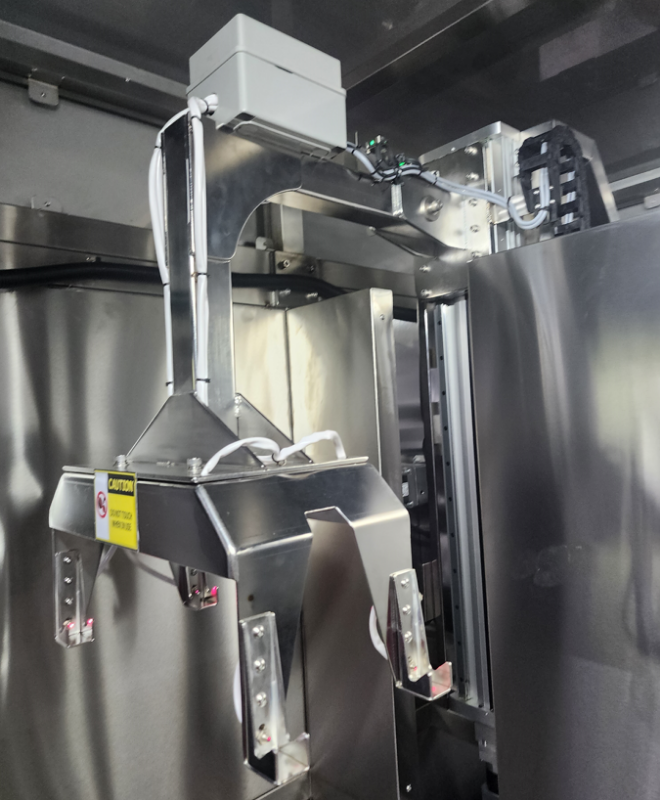

• Fully automatic transfer arm & loading/unloading conveyors with variable load capacity (15kg-30kg).

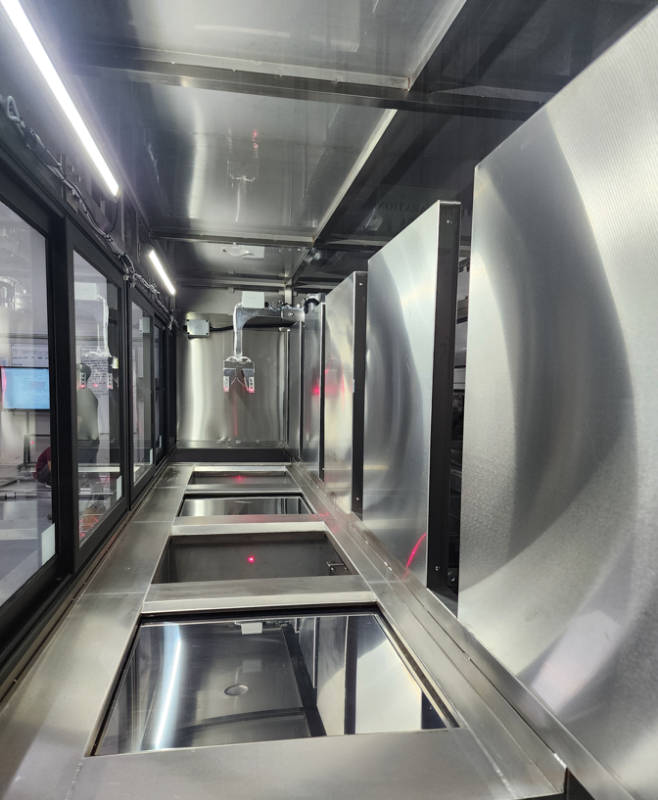

• Ultrasonic detergent wash with overflow, pre-filtration, and closed-loop filtration system.
• DI water spray rinsing with reciprocating mechanism and high-pressure pump.
• DI water final immerse rinse with CDA bubbling, agitation, and resistivity meter monitoring.
• Advanced hybrid drying system featuring reciprocating CDA blow and closed-loop hot air circulation with a finned-type heater and blower.
• Maintenance reminder alarm for scheduled servicing.
• Barcode scanner tracking for monitoring cleaning process parameters and product traceability.

Machine Advantagas

• Optimized production efficiency and flexibility through automated handling and adjustable load capacities.
• Improved chemical quality over time via advanced filtration mechanisms in the ultrasonic wash system.
• Effective detergent removal through high-pressure DI water spray rinsing, preventing carryover before the final rinse.
• Ensured optimal cleanliness and water purity with the DI immerse rinse using CDA bubbling, agitation, and resistivity control.
• Efficient and thorough drying thanks to the hybrid drying system combining CDA blow and heated air circulation.
• Continuous, optimal performance maintained through timely maintenance alerts.
• Enhanced traceability and quality control via barcode scanner tracking.
