SUPER FLUX CLEANING MACHINE SPECIFICATION
INCLUDE DESIGN AND MACHINE DETAILS
SAQ-FA5 SUPER FLUX CLEANING MACHINE
MACHINE DESIGN PARAMETER
| CLEANING OBJECT | : | LEAD FRAME WITH MAGAZINE | ||||||
| CLEANING LIQUID | : | ZEFRON FA+ | ||||||
| RINSING LIQUID | : | DI WATER | ||||||
| DRY METHOD | : | HYBRID AIR DRYING | ||||||
| MACHINE HANDLING TYPE | : | FULLY AUTO SINGLE ARM | ||||||
| CYCLE TIME | : | 10-15 min [DEPEND ON TIME SETTING] | ||||||
| CLEANING Q'TY | : | 32 MAGAZINE OR 128,000 pcs/hr OR 3,000,000 pcs/day | ||||||
| WORK FLOW | : | HORIZONTAL LEFT TO RIGHT | ||||||
MACHINE DESIGN OVERVIEW

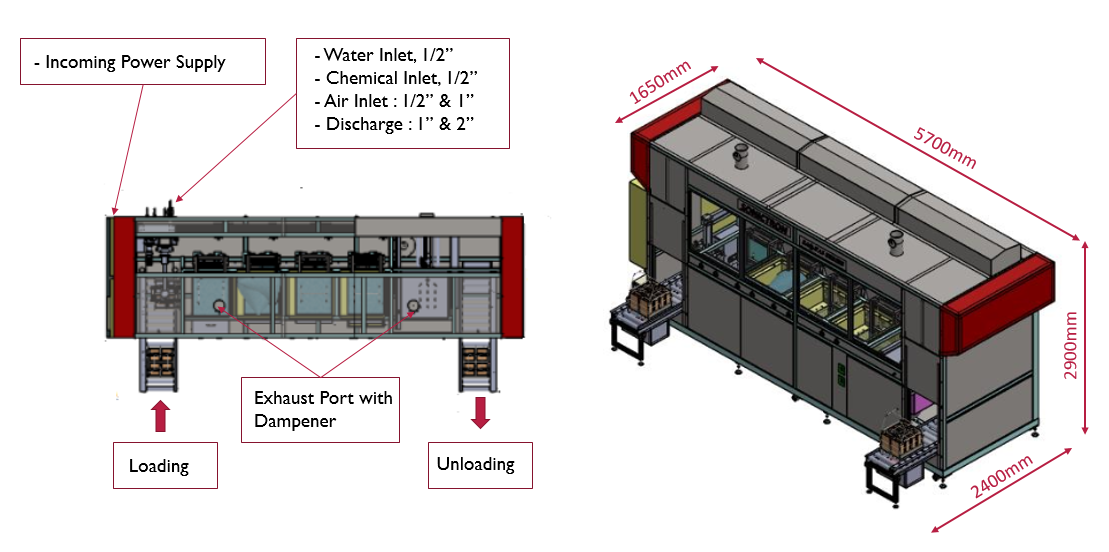

The picture below shows SAQ-FA5 Super Flux Cleaning general features and design size as per our previous project.
This is the standard design of SAQ-FA5 Super Flux Cleaning and the process has already proven to increase the efficiency of cleaning lines for semiconductor companies.
Taking sustainability and the environment into consideration, we have incorporated a set of high-precision filtration installations to recover and recycle the chemical that had been contaminated with flux residues.
Flux residues are removed before they can find their way into the filtration system.
Chemical fume is prevented from escaping into the surroundings in the design exhaust port with a fully enclosed body frame and front-loading & unloading conveyor with auto shuttle door.
SAQ-FA5 Super Flux Cleaning machine design not only able to help increase the efficiency of cleaning line for semiconductor factory but also reduces manpower cost.
SAQ-FA5 Super Flux Cleaning design not only focuses on production efficiency but also the safety of the machine's user and environment.
MACHINE FEATURES

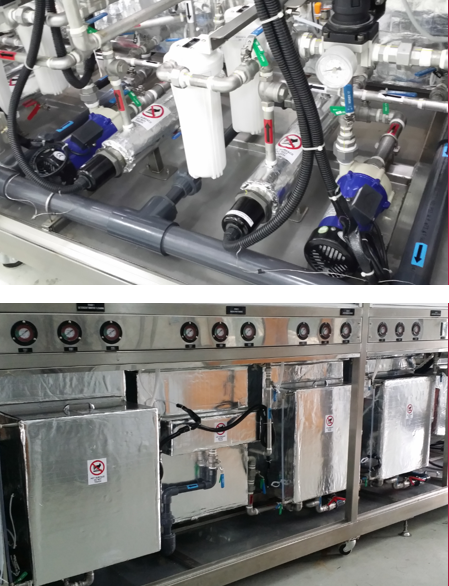

SAQ-FA5 Super Flux Cleaning machine design also focusses maintenance approach which is easy access at the rear side and the front side. Refer to the picture below.

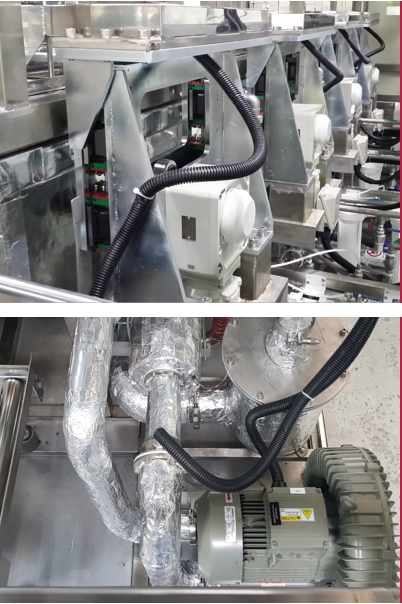

SAQ-FA5 Super Flux Cleaning machine also has effective system integration. Each tank has an individual agitation system and close-loop recirculate blowing system
